Australian Avanue Divide Structure
Notice the LED light fixtures on the pole with PTZ color HD video cameras. Real time and historical recording were included.
-
Gate Control Structure
Australian Avenue Divide Gate Control Structure. Notice the electric motor actuators.
-
Submersible Storm Water Pumps
These are high flow, low head MWI Pumps. Notice the power and control cables exiting the top of the pump can.
-
Storm Water Pump Station
Palm Beach County Road and Bridge Storm Water Pump Station Structure being built across the L2 Canal. Notice the Electricians are installing the underground conduits below the proposed storm water tubes.
-
Storm Water P.S. Electrical Building
The electrical building houses all the electrical equipment to operate the station. It includes the Cummins Standby Generator, power distribution panel board, automatic transfer switch, motor control center, radio telemetry unit and network equipment. The station operates autonomously or manually via the Trihedral SCADA system and RTU.
-
Trash Raker
This storm water pump station includes an Automatic Trash Raker. Notice the lower rake. The superstructure, power and control systems will be installed later.
-
Storm Pumps functional testing
The Station moves storm water from west to east. When the east location is high, pumping stops. The east location level is transmitted via telemetry.
-
Permeate Degass and Odor Control
Permeate Clear-well degassifier with Odor Control.
-
High Service Pumps
Outdoor High Service Pumps. Notice the discharge check valve and limit switch. Limit switches are used to be assured of flow because the pumps are fed from VFD.s.
-
Pretreatment Filters
Pretreatment Iron Filters were used before nano-filtration.
-
Surfacial Water Well
Notice the wellhead instruments, they include draw-down sensor, a magmeter and check valve limit switch. The control panel includes a VFD and PLC, connected to a plant wide SCADA system. It contains the flexibility to be autonomously controlled or manually controlled via the SCADA system.
-
Membrane Plant Feed Water Pump
The pump is controlled using a VFD and magnetic flow meter.
-
NaOCl Storage Tanks
This Chemical Storage Facility includes outdoor storage tanks.
-
RO Control Room
This Reverse Osmosis Control Room provides information and control systems.
-

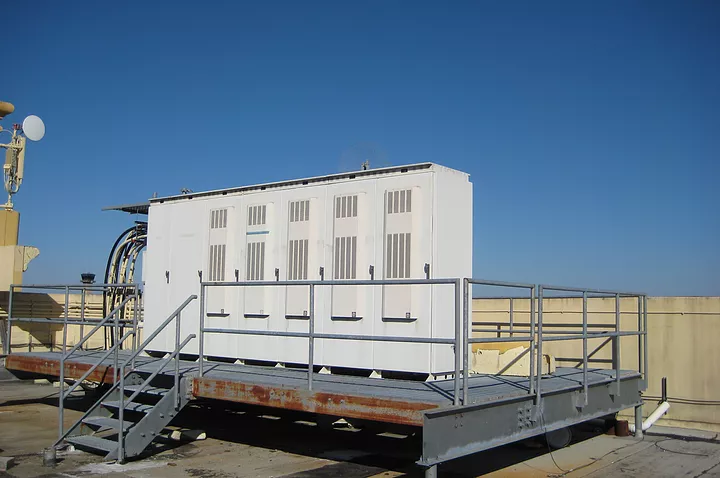

roof top mounted equipment
Roof top mounted equipment on top of a raised platform.
-

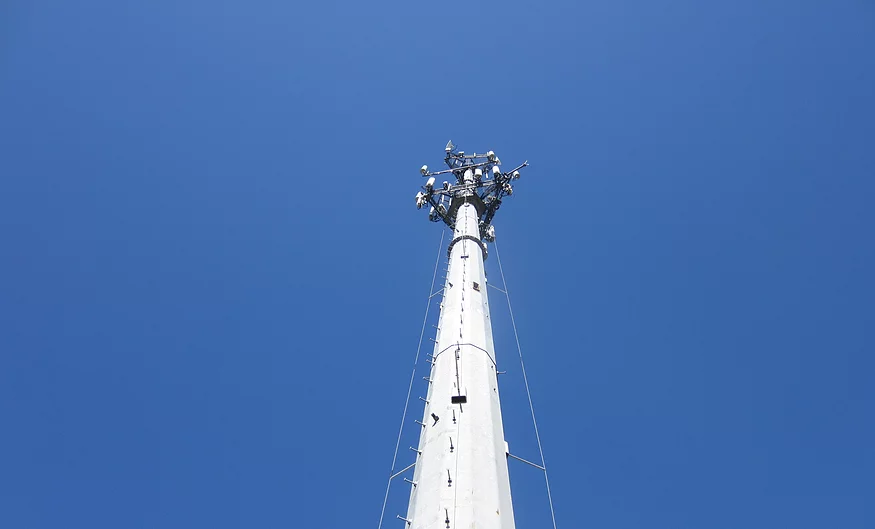

Mono-pole
Multiple carriers use this mono-pole.
-
Site Walk
Engineers typically perform site walks to locate or verify equipment and existing facilities.
-
Small Roof-top site
This roof top located site is installed amid other equipment.
-

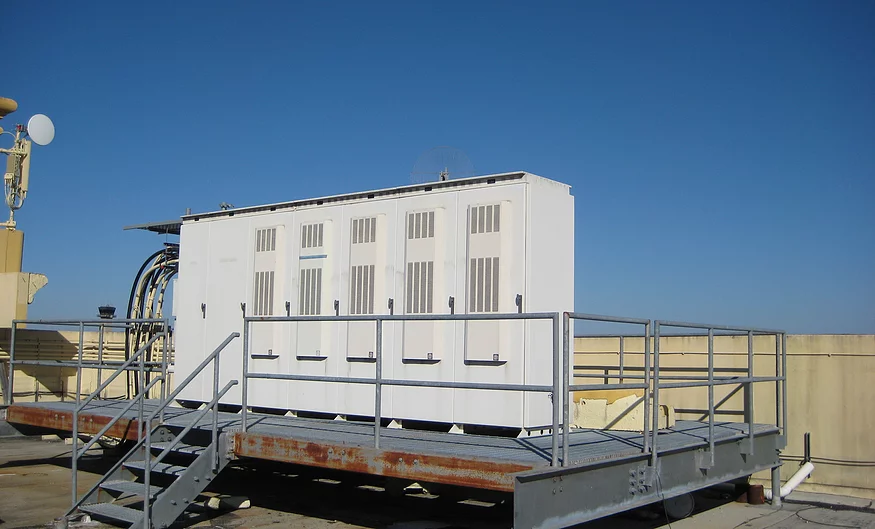

roof top platform mounted
-
monopole with multiple carriers
-
-
-
Ditch Aerator
-
